Metal Wide Belt Sanding Machine Customized Small Footprint

Wide Belt Sanding Machine

General

This model can be configured for metal finishing or deburring. This versatile group of machines is available in 2 widths with configurations of 1-3 heads. By combining an abrasive belt and a nonwoven roll brush, products can be deburred and rounded in one pass. The machine is produced for deburring laser cut metal and edge rounding of sides, with low user costs.

Here are some key features and functions of a Wide Belt Sanding Machine:

1. Sanding Belt: The machine utilizes a wide sanding belt that is tensioned and driven by rollers. The belt is typically made of abrasive material, such as aluminum oxide or silicon carbide, which is designed to remove material and achieve the desired finish.

2. Conveyor System: The workpiece is placed on a conveyor belt that feeds it through the sanding assembly. The conveyor speed can be adjusted to control the rate of material removal and achieve the desired surface quality.

3. Sanding Heads: The sanding assembly consists of one or more sanding heads, which can be equipped with different types of abrasive belts or brushes. These heads rotate or oscillate to perform sanding, smoothing, and polishing operations on the workpiece.

4. Variable Speed and Pressure: Wide Belt Sanding Machines often feature variable speed controls for the conveyor belt and adjustable pressure settings for the sanding heads. These allow operators to optimize the sanding process based on the material type, desired finish, and specific requirements.

5. Dust Collection: Sanding generates a significant amount of dust and debris. Many Wide Belt Sanding Machines are equipped with integrated dust collection systems to capture and remove the particles, improving air quality and reducing cleanup time.

Technical Data

• Number of heads 1-3
• Available in multiple configurations depending on customer application
• Machine widths of 37″, and 52″
• Electronic photo-eye abrasive belt tracking
• Dust extraction available
• Minikol Go-To bed position device
• 15-45 fpm feed speed
• Up to 40 HP main motors
• 0-6″ machine opening
• 8″ minimum part length
• 6-10″ contact drums
• 8″ brush head diameter
• Oscillating brush heads
• High production capacity with increased ROI and reduced operating costs
• Increased throughput with the ability to run up to 2 shifts
• Dry operation
• Small footprint

Metal Wide Belt Sanding Machine

Wide Belt Sanding Machine Customized

Wide Belt Metal Sanding Machine Small Footprint

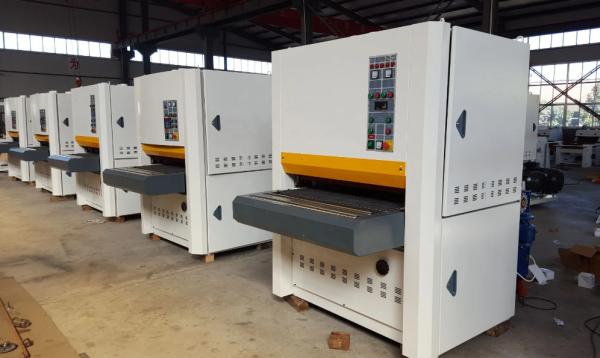

Metal Wide Belt Sanding Machine Customized Small Footprint Images
