Metalworking Wide Belt Sander Machine Manufacturer For Deburring / Sanding / Polishing

  • 1
  • 2
  • 3

Brand Name : SKD

Model Number : MS13RR

Place of Origin : China

Name : Metal Wide Belt Sander

Max Working Width : 1350mm

Control Panel : Control panel with motor load meter,digital readout

Work piece Max Width : 1350mm

Table Lifting Motor : 1.5kw

Number of Heads : 2

MOQ : 1 set

Price : USD10000-350000

Packaging Details : Shrink Wrapped or Woodcase

Delivery Time : 20-60 days

Payment Terms : TT

Supply Ability : 70-100set per year

Contact Now

Metal Wide Belt Sander

General Description

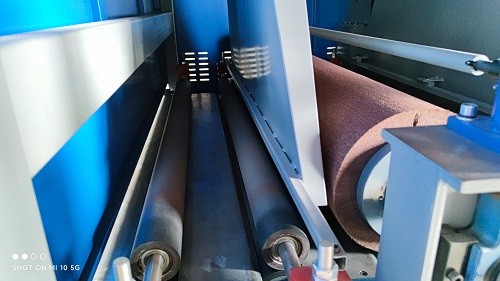

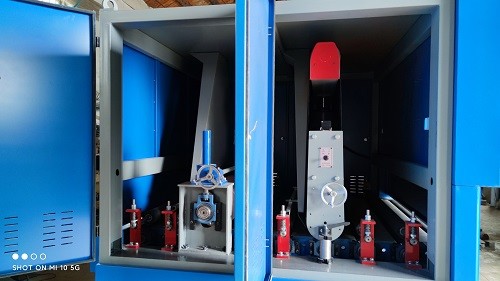

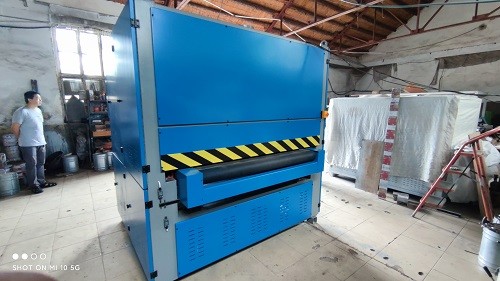

This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .
The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.
SPECIFICATIONS
  1. Abrasive Belt Size 2500x1380mm
  2. Motor : 22kw +22kwwith frequency control
  3. Table Lifting Motor: 1.5kw
  4. Number of Heads :2
  5. Sanding Drum Diameter: 240mm
  6. Work piece fix :Vacuum
  7. Vacuum Area:1250×200mm
  8. Speed setting of sanding drum: Frequency converter control
  9. Sanding Drum RPM: 1720
  10. Foot Print: 51-1/2″ x 19″
  11. Sanding Belt Oscillation: Yes
  12. Sanding Belt Motor Break: Yes
  13. Conveyor Opening 0-80mm
  14. Floor to Table Height 900-990mm
  15. Conveyor Drive Motor 5.5kw

Metalworking Wide Belt Sander Machine Manufacturer For Deburring / Sanding / PolishingMetalworking Wide Belt Sander Machine Manufacturer For Deburring / Sanding / PolishingMetalworking Wide Belt Sander Machine Manufacturer For Deburring / Sanding / Polishing
