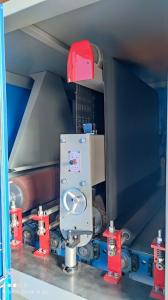

Affordable Wide Belt Sander , MS13RR Big Belt Sander Machine Manufacturer

  • 1
  • 2
  • 3

Brand Name : SKD

Model Number : MS13RR

Place of Origin : China

Name : Big Belt Sander Machine

Type : Sanding

Model : MS13RR

Function : Deburring, Grinding, Slag Removal, Finishing

Max Working Width : 1350mm

Power : 380v 50Hz or customized

MOQ : 1 set

Price : USD10000-350000

Packaging Details : Shrink Wrapped or Woodcase

Delivery Time : 20-60 days

Payment Terms : TT

Supply Ability : 70-100set per year

Contact Now

Metal Wide Belt Sander

General Description
This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing. With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .
The wide belt sander typically incorporates adjustable settings for controlling the speed of the conveyor belt, the pressure applied to the workpiece, and the type of abrasive used. This allows operators to achieve the desired level of surface finish and remove material to precise specifications. Some advanced models may also include additional features such as automated feeding systems, digital controls, and multiple sanding heads for increased versatility and productivity.
SPECIFICATIONS

  1. Abrasive Belt Size 2500x1380mm
  2. Motor : 22kw +22kwwith frequency control
  3. Table Lifting Motor: 1.5kw
  4. Number of Heads :2
  5. Sanding Drum Diameter: 240mm
  6. Work piece fix :Vacuum
  7. Vacuum Area:1250×200mm
  8. Speed setting of sanding drum: Frequency converter control
  9. Sanding Drum RPM: 1720
  10. Power supply: 380v 50Hz or on request
  11. Dust port size: drum 150mm x 6, space 100mm x 4
  12. Automatic Thickness Control: Yes (Thickness or)
  13. Foot Print: 51-1/2″ x 19″
  14. Sanding Belt Oscillation: Yes
  15. Sanding Belt Motor Break: Yes
  16. Conveyor Opening 0-80mm
  17. Floor to Table Height 900-990mm
  18. Conveyor Drive Motor 5.5kw
  19. Feed Speed 5-25 meter per minute variable
  20. Dimension 2200x2500x2300mm WxDxH
  21. Weight 3.9 ton
  22. Work piece Max Width 1350mm
  23. Work piece Max Thickness 60mm
  24. Work piece Min. Length 100mm
